High-productivity & Versatile UV-LED Inkjet Printer

LPS330 is an advanced, versatile and cost-effective UV-LED inkjet printer, which aims to meet the needs of various printing applications. The highly engineered and compact design of LPS330 integrates the functions required for packaging and specialty labels, industrial decoration, and variable data printing.

As an all-in-one printer, LPS330 has the tools you need to enter the digital printing world. Not only can you enjoy the photographic image quality that benefits from the multi-pass scanning printing technology, but you can also obtain higher printing effciency than ever with a single print swath up to 320 mm (12.6 in). LPS330 is an ideal choice for responding to the growing demand for personalized printing, custom printing, and sample printing.

Up to 720 × 1200 DPI
Varnish Printing
2.5D Embossed Effects
Up to 320 mm (12.6 in) Width per Print Swath
Flatbed Printing Mode
Roll-to-Roll & Flatbed Printing Mode

LPS330
LPS330
LPS330
LPS330

Offer versatile and powerful sheet or roll printing solutions for rigid, flexible, thick or thin substrates.

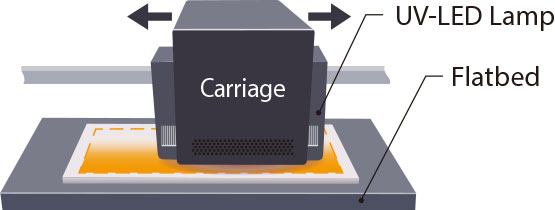

In flatbed printing mode, LPS330 allows users to print directly on rigid substrates and supports different templates for different items, such as stationery, cards, gifts, and novelties.

Flatbed size: 1200 × 350 mm (47.2 × 13.8 in)
Vacuum zone size: 1100 × 330 mm (43.3 × 13 in)
Maximum print size: 1100 × 320 mm (43.3 × 12.6 in)
Z-axis height: Up to 40 mm (1.57 in)

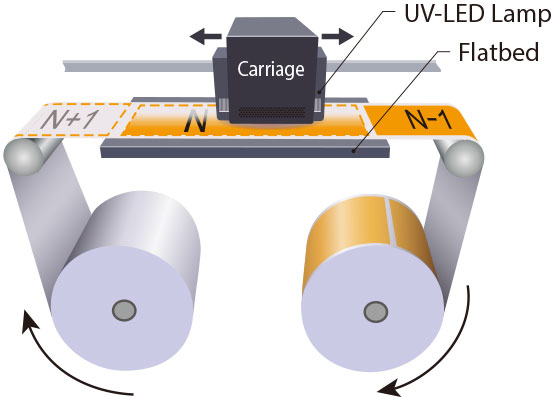

In roll-to-roll & flatbed printing mode, LPS330 allows you to produce eye-catching, distinctive prints for a wide range of applications.

Roll feeding page by page with the length of 1100 mm
Maximum print width: 320 mm (12.6 in)
Media thickness: 0.32 mm (0.013 in) maximum

Finishing & embossed effects

2.5D printing enables you to achieve remarkably rich and special effects ranging from gloss or matte finishes for overall or only appealing parts, to texture or embossed effects. LPS330 also supports to build up raised ink layers on a wide range of thick substrates.


Multiple layers built up to form a red fish with embossed effects	Embossed effects on an award plaque	Texture effects with CMYK inks and White ink	Braille dots on a pharmaceutical box printed with Varnish	Embossed effects with Varnish

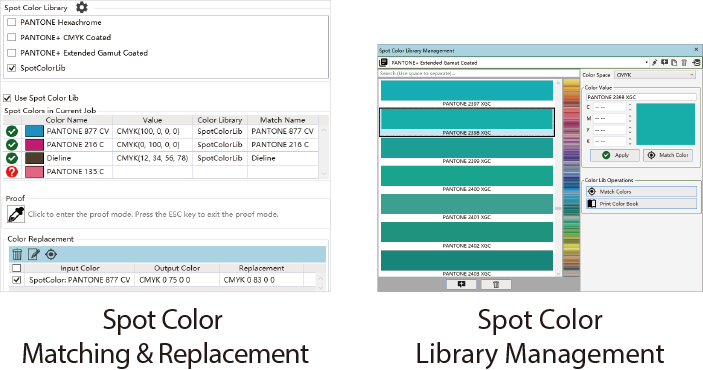

Logos & recognizing color printing. LPS330 supports professional color management workflow and is compatible with various international standard ICC profiles. LPS330 enables you to print spot colors with combinations of 4 or 6 process inks, or with spot inks. It helps you to meet even stringent corporate brand requirements while printing corporate logos and recognizing colors.

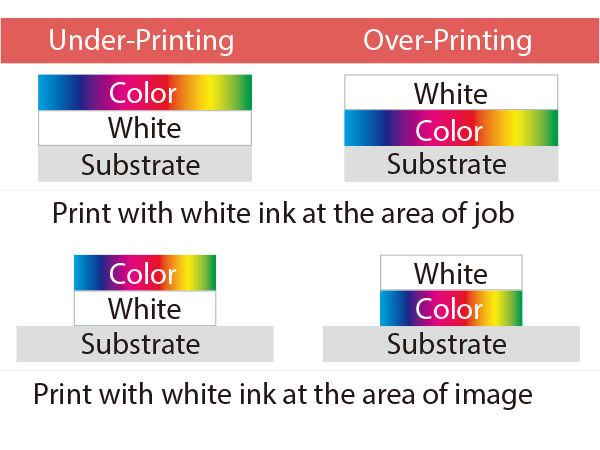

Outstanding white color printing. The White Ink Printing feature including under-printing and over-printing offers outstanding solid and opaque white ink layers on transparent films or metallic substrates. High quality images without white stitch lines can be obtained thanks to the Choke feature.
High-resolution printing. Equipped with industrial DOD piezoelectric print heads, featuring up to 600dpi physical resolution, LPS330 produces small-sized texts and crisp, clear, easy-to-read barcodes. Amica’s proprietary VDS (Variable Droplet Size) control technology realizes sharp images with fine details of graphical elements, smoother gradients and vivid colors.

- Faster RIP speed than PostScript-based print production workflows.
- Stable and accurate interpreting of PDF files with the native Adobe^? PDF Postscript Engine (APPE).
- Check and export of all/ part of the variable data in PDF files.


NuviPRINT^? Main Window with Variable Data List	Printer Control Software	Code 39

	For higher print productivity, the wide shuttle carriage supports up to 18 print heads and 6 color channels to achieve 320 mm print width per print swath.
	During high-speed production, the vacuum table keeps the substrate stationary and flat to obtain precise color registration.
	The splicing table facilitates fast roll switching, reducing downtime and material waste.

	Based on the all-in-one design concept, the small and compact print head maintenance module allows automatic purging, wiping and capping.
	Using the integrated technology including servo drive control, tension control, and automatic deviation correction, LPS realizes high-precision media feeding.
	The CCD vision system can quickly identify black positioning marks to accurately overprint varnish patterns, variable data or images on the preprinted roll.

PRODUCTION WORKFLOW

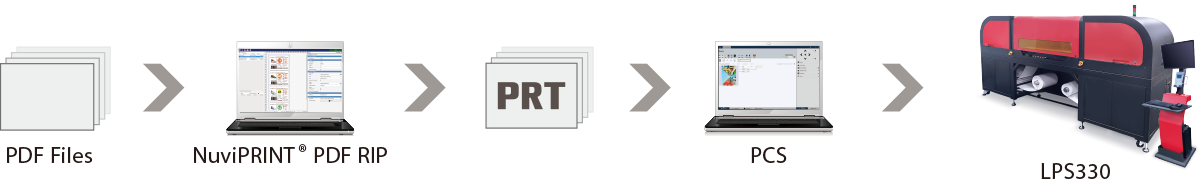

LPS330 works seamlessly with the NuviPRINT^? PDF RIP software and Printer Control Software for high-productivity and versatile printing. The enhanced production workflow not only implements a streamlined approach, but makes predictable and high-quality output as well.

Print technology: DOD piezoelectric inkjet print technology;
Active Negative Pressure System

Printing modes: Flatbed Printing;
Roll-to-Roll & Flatbed Printing

Printing resolution: 720×600 dpi，720×900 dpi，720×1200 dpi

Number of lamps: 2 UV-LED lamps

Ink types: UV curable ink (CMYK, CMYKLcLm, CMYKVV, CMYKWW, CMYK+Spot Color1+Spot Color2)

Number of colors: Up to 6 ink channels

Ink tank capacity: 3L per color, double-inlet bulk tanks with liquid level sensors

Number of printheads: Up to 18 print heads

Substrate types: Flatbed Printing: folding cartons, PVC, wood, glass, foam board, acrylic, tile, metal, plywood, plastic, etc.
Roll-to-Roll & Flatbed Printing: coated and uncoated paper, self-adhesive label stock, aluminum foil, white and transparent films, PP, PE, PVC, PET, BOPP, etc.

Substrate thickness: Flatbed Printing: 40 mm (1.57 in) maximum object height
Roll-to-Roll & Flatbed Printing: 0.32 mm (0.013 in) maximum media thickness

Unwinder/ Rewinder: Max. roll diameter: 380 mm (15 in);
Inner core diameter: 76.2 mm (3 in);
Max. roll width: 330 mm (13 in);
Max. roll weight: 50 kg (110.2 lb);
Rolls with weights of more than 50 kg (110.2 lb) can be optionally supported.

Flatbed size (W × D): Flatbed: 1200 × 350 mm (47.2 × 13.8 in);
Vacuum zone: 1100 × 330 mm (43.3 × 13 in)

Print size: Flatbed Printing (W × D): Up to 1100 × 320 mm (43.3 × 12.6 in);
Roll-to-Roll & Flatbed Printing: Up to 320 mm (12.6 in) width

Dimensions (W × D × H): Printer: 3500 × 900 × 1785 mm (137.8 × 35.4 × 70.3 in);
PC Stand: 630 × 610 × 1730 mm (24.8 × 24 × 68.1 in)

Environment requirements: Temperature: 16 to 28°C (61 to 82°F);
Relative Humidity: 40 to 60% (Recommended);
Altitude: up to 1 km (3281 ft)

Power requirements: Frequency: 50/ 60 Hz;
Voltage: 230 V ± 10%;
Power: 6.6 KW/ 30 A

Optional equipment: PC: Intel 4 Core i7, 16 GB dual-channel, 500 GB

RIP & User interface: NuviPRINT^? PDF RIP Software;
Built-in Adobe^? PDF Print Engine (APPE);
Printer Control Software (PCS)

Connectivity: PCIe card;
Fast Ethernet (100 Mbps)

Print Resolution	Color Modes	Number of Print Heads	Ink Types	Image Size	Print Productivity*
					Unit: sqm/ hr	Unit: sqft/ hr
720 × 600 dpi	CMYK or CMYKLcLm	12 (2 × 6) or 18 (3 × 6)	UV curable ink	1100 × 320 mm	144	1550
720 × 900 dpi					115	1237
720 × 600 dpi	CMYK + WW or CMYK + VV	18 (3 × 6)			67	723
720 × 900 dpi					48	516

* Print productivity will vary depending on print resolution, color modes, the number of print heads, image size, etc.

Packaging and Specialty Labels

Special food and beverage
Household chemical
Industrial and security labels
Electronics and automotive labels

Decorations

Stationery and toys
Novelties and gifts
Control panels and electronics
Cards

Variable Data Printing

Tickets and envelopes
Transpromos
Lotteries and bingos
Business forms
